Viega 606541 Rotaplex Trio bath inlet, waste and overflow fitting 6141.11

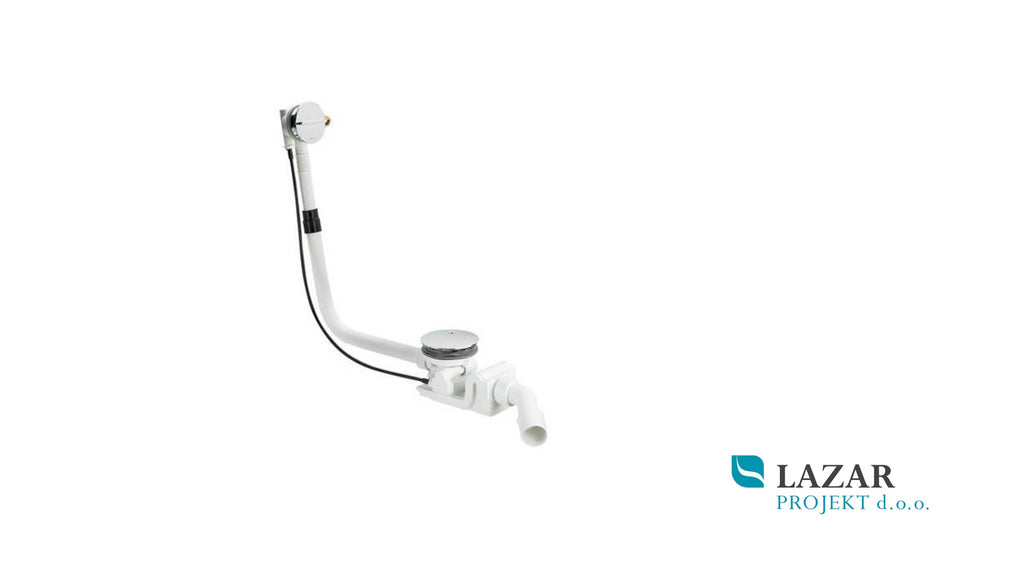

Viega 606541 is a Rotaplex Trio bath inlet, waste and overflow fitting, model 6141.11, with Visign RT3 design. It is intended for bathtubs with water inlet through the overflow body and combines waste, overflow and water inlet in one functional system.

The set includes a chrome-plated rotary rosette, chrome-plated cover rosette, chrome-plated cover, inlet flange, trap and 45° waste bend. The article is intended for bathtubs with a 90 mm waste opening.

Technical data

Manufacturer: Viega
Article: 606541
Model: 6141.11
Program: Rotaplex Trio
Design: Visign RT3
Product type: bath inlet, waste and overflow fitting
Application: bathtubs with 90 mm waste opening
Water inlet: through the overflow body
DN: 40/50

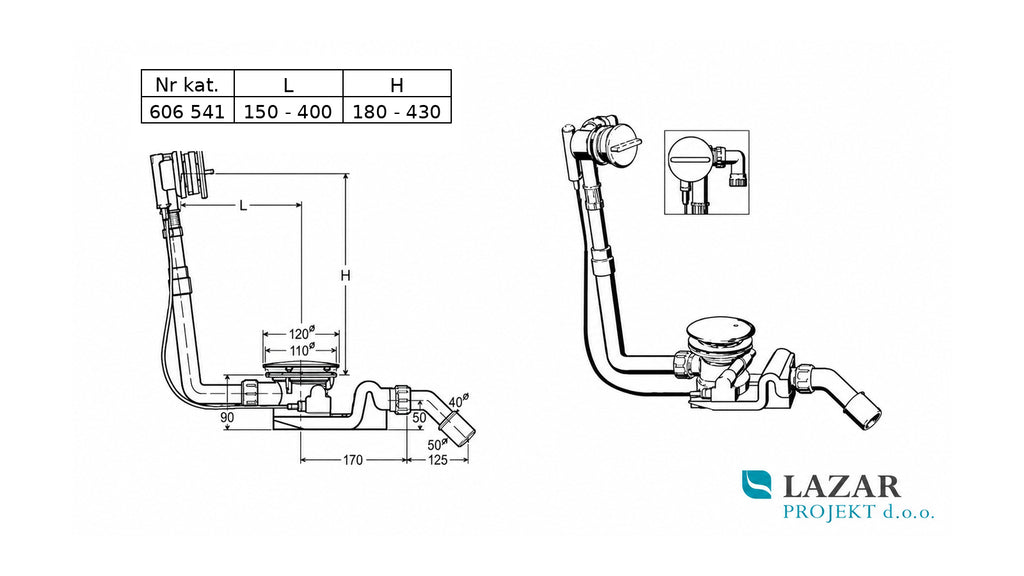

Dimension L: 150–400 mm
Dimension H: 180–430 mm
Equipment: chrome-plated rotary rosette, chrome-plated cover rosette, chrome-plated cover, inlet flange, trap, 45° waste bend
Standard: DIN EN 274
