Viega 421168 Mono bidet installation element 8317

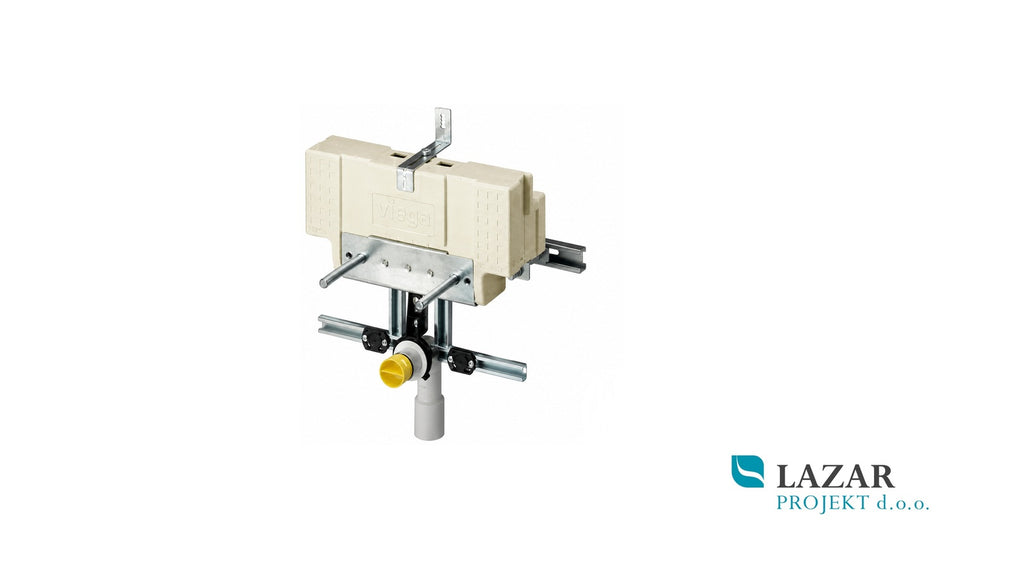

Viega 421168 is a Viega Mono bidet installation element, model 8317, designed for mounting a wall-hung bidet. It is used in pre-wall installation systems where a stable mounting element is required for fixing the bidet and arranging the connections.
The element allows adjustment and adaptation of the connection dimensions according to the selected sanitary ceramic and installation method. The built-in assembly includes fixing and connection elements for mounting the bidet, as well as preparation for water and drain connections.
Technical data
Manufacturer: Viega
Article: 421168
Model: 8317
Range: Viega Mono
Product type: bidet installation element
Application: mounting of a wall-hung bidet
Installation type: pre-wall installation element
Housing material: EPS / mounting assembly
Connections: for water and drain connection of the bidet
Drain connection: DN40/50
Purpose: fixing and connecting a wall-hung bidet
Download instructions for Viega Mono bidet block 421168 / 8317
