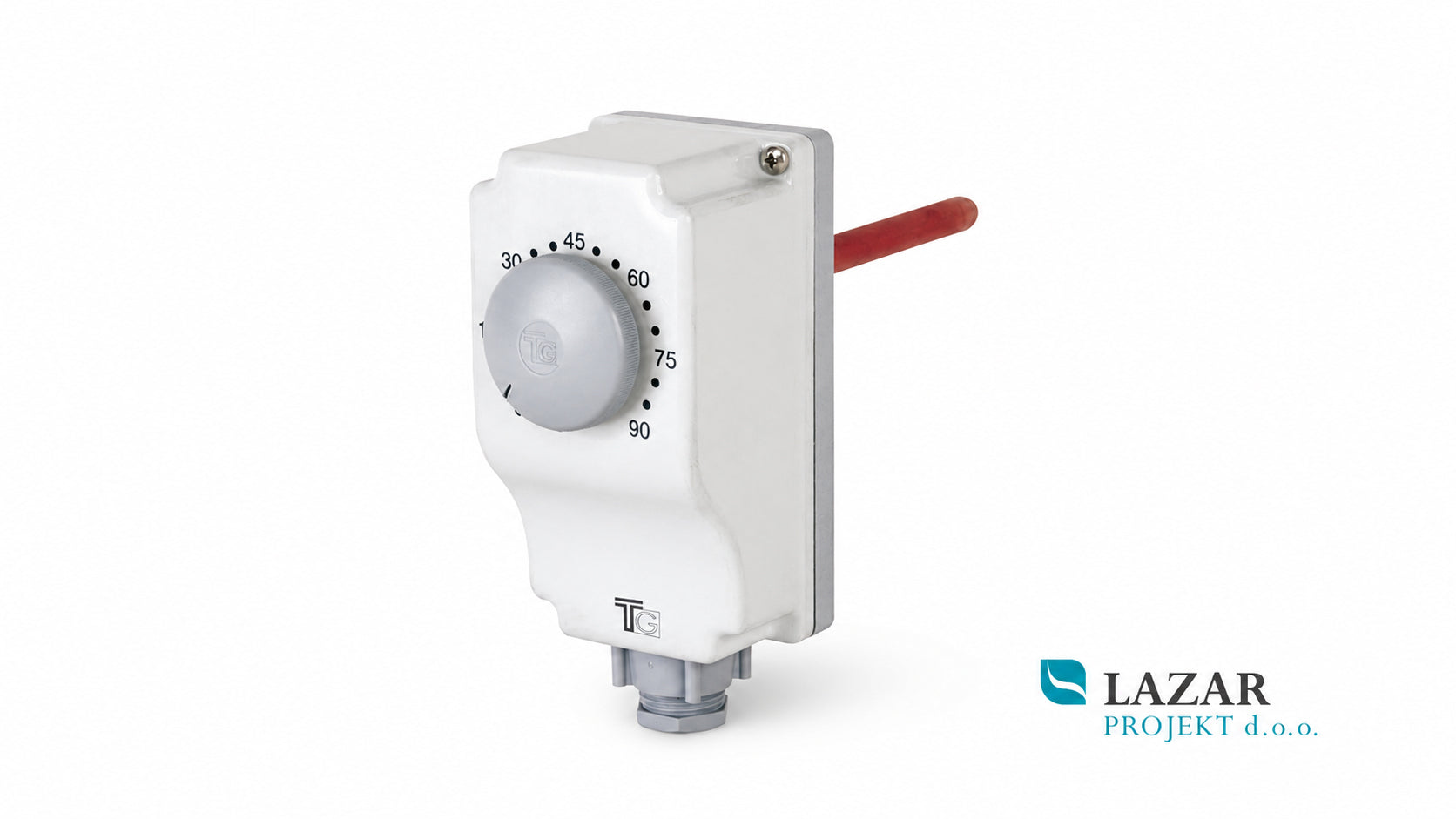

T&G 7P1.1R360.00A immersion thermostat 0–90 °C

T&G 7P1.1R360.00A is a control thermostat with immersion pocket, designed for temperature monitoring and regulation in heating, domestic hot water and other technical systems. It is used to control pumps, boilers, burners or other devices according to the measured medium temperature.

The thermostat has a housing with an external adjustment knob and a temperature scale from 0 to 90 °C. The immersion pocket / sensor is inserted into a suitable connection on the installation, where it measures the temperature of water or another medium. The item is suitable for service replacements and for use in various heating and temperature control systems.

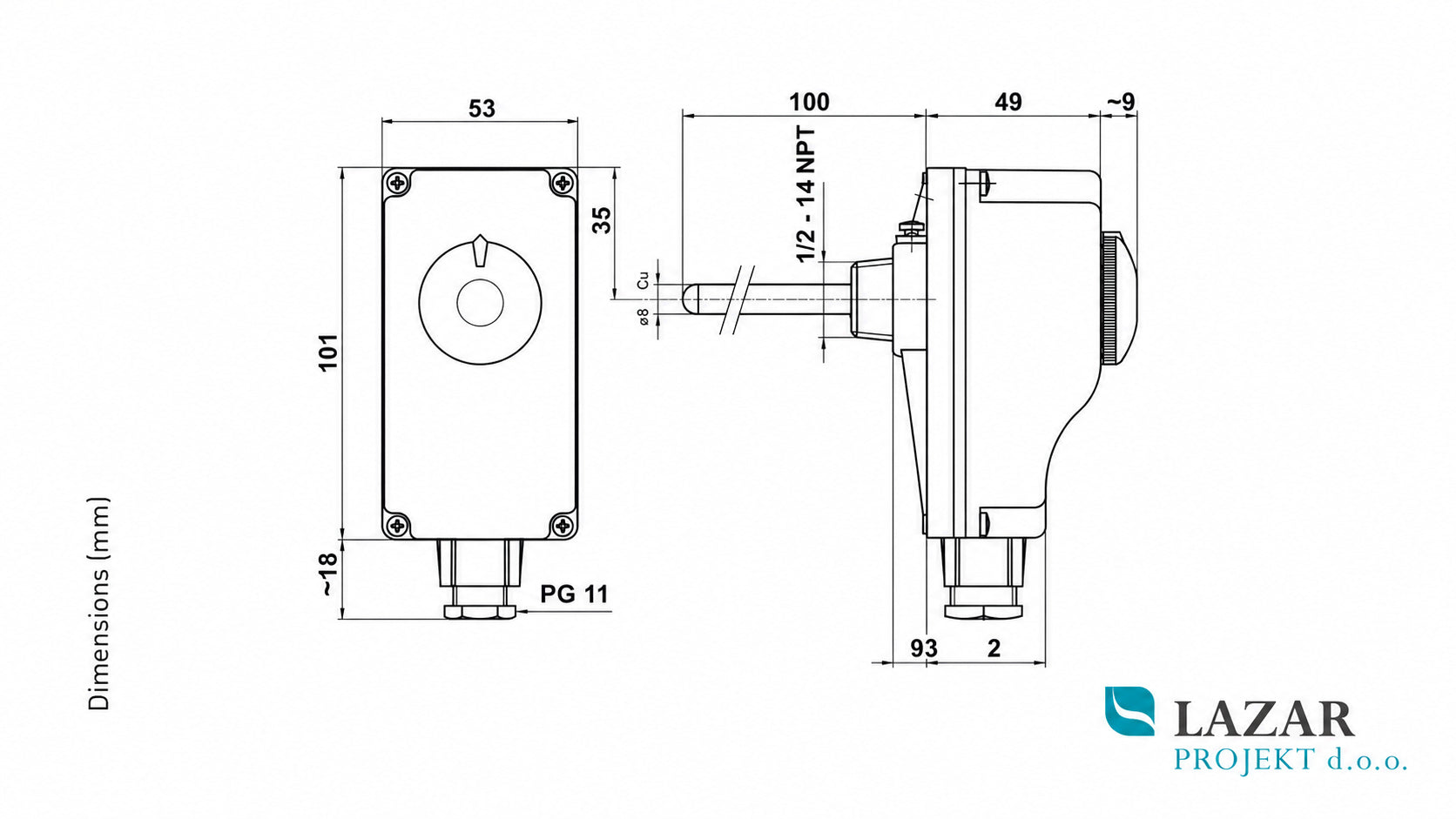

Technical data:
Manufacturer / brand: Fantini Cosmi / T&G
Article: 7P1.1R360.00A
Product type: control thermostat with immersion pocket
Temperature range: 0–90 °C
Adjustment: external, with adjustment knob
Immersion pocket connection: 1/2" – 14 NPT
Immersion length: 100 mm
Sensor diameter: Ø8 mm
Housing: grey / white version with adjustment dial
Cable entry: PG 11
Use: heating systems, domestic hot water systems, pump control, boiler control and other temperature control applications
