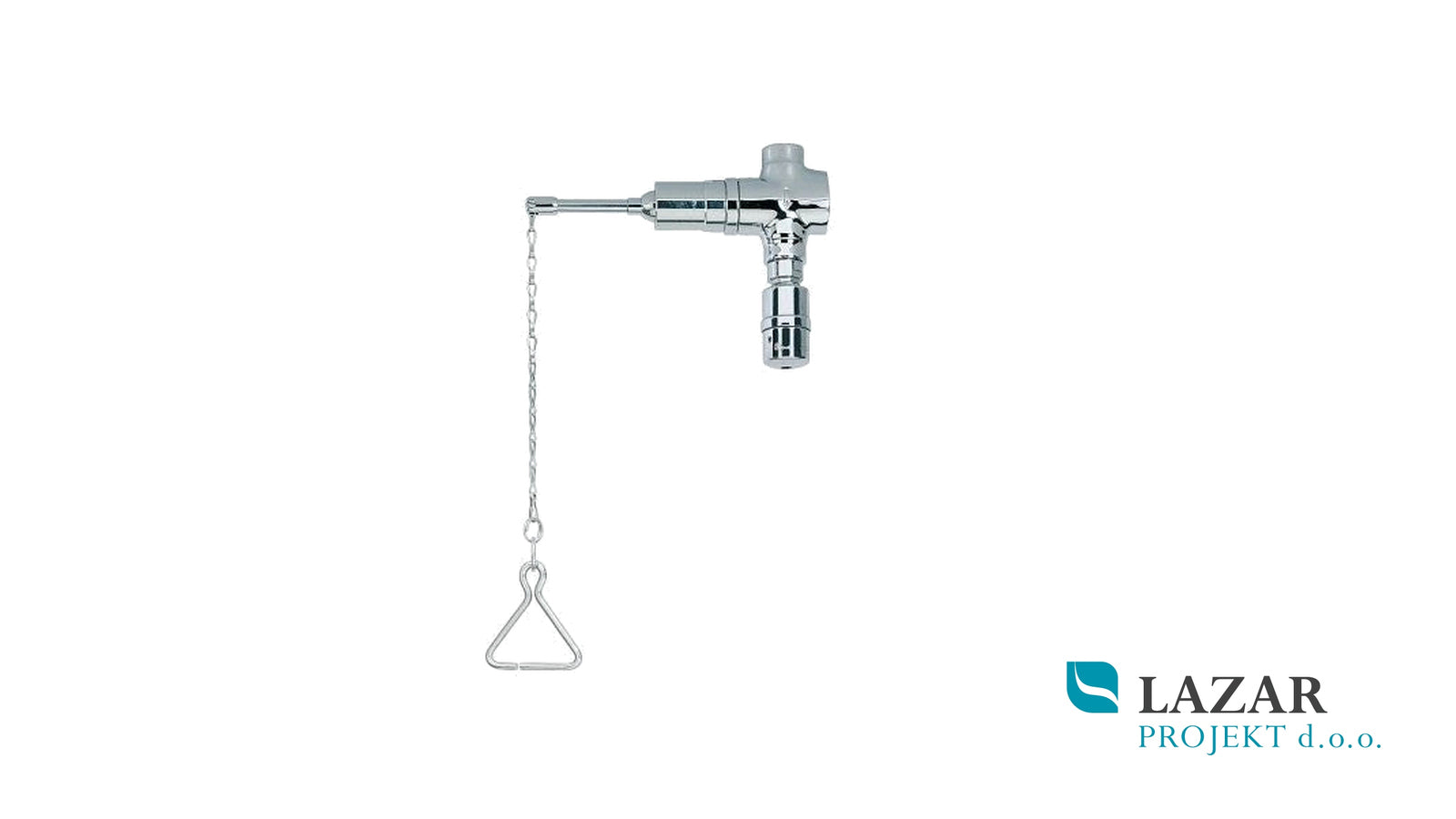

RIVER R743 ceiling-mounted pull-chain timed shower, chrome

The RIVER R743 is a ceiling-mounted timed shower from the MAGIC series, operated by a pull chain. It is designed for public and professional sanitary facilities such as sports centres, changing rooms, campsites, swimming facilities, industrial premises and communal showers.

The water flow is activated by pulling the chain and stops automatically after approximately 30 seconds. The integrated flow control device provides a constant flow rate of approximately 9 l/min at a water pressure between 0.5 and 9 bar.

The body is made of polished chrome-plated brass. The brass timed cartridge is fitted with a pin and stainless-steel filters. The adjustable anti-limescale shower head produces a water jet through a single outlet using an internal turbine.

The product does not mix or regulate the water temperature. Water at a suitable temperature must therefore be supplied to the inlet, using an upstream thermostatic or other mixing valve where required.

Damaged packaging

The product is new and unused, but its original packaging is damaged, worn or opened. The condition of the packaging does not affect the product’s function, quality or usability.

Technical data

Manufacturer: RIVER S.p.A.
Article: R743
Series: MAGIC
Product type: ceiling-mounted self-closing timed shower
Operation: pull chain
Flow duration: approximately 30 seconds
Flow rate: approximately 9 l/min
Operating pressure: 0.5–9 bar
Connection: 1/2″ female thread
Chain length: approximately 790 mm

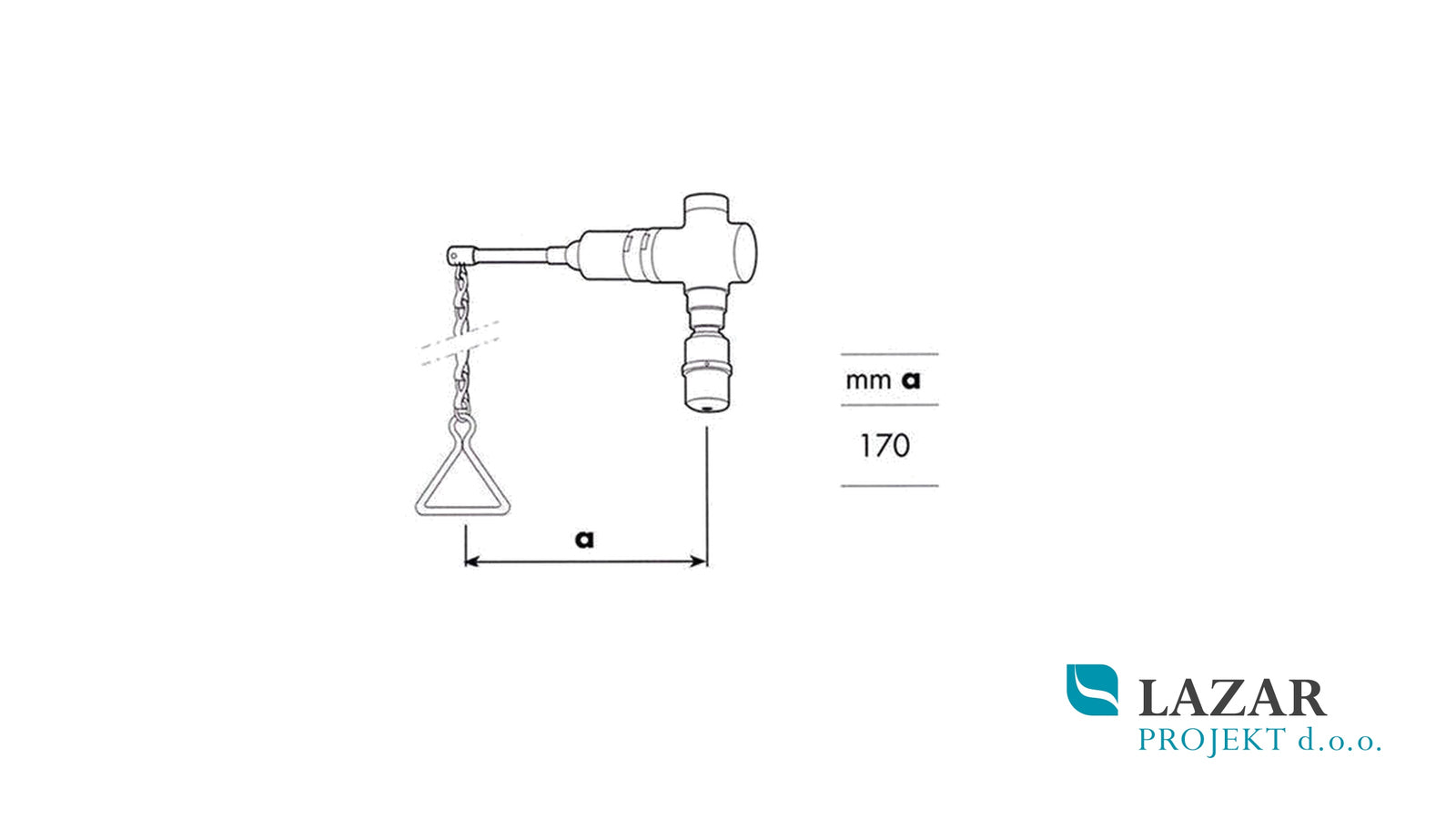

Distance from chain to shower axis: 170 mm
Body material: brass
Finish: polished chrome
Shower head: adjustable, anti-limescale design
Cartridge: brass, with pin and stainless-steel filters
Replacement cartridge: RIVER A 2705/30/7
Temperature control: not included
Application: public, communal and professional showers
