Remer-117RA-G-3-8-connection-set-for-10-mm-tube

The Remer 117RA is a connection set designed for connecting a rigid tube with a 10 mm outside diameter to a compatible plumbing fitting with a G 3/8-inch male thread.

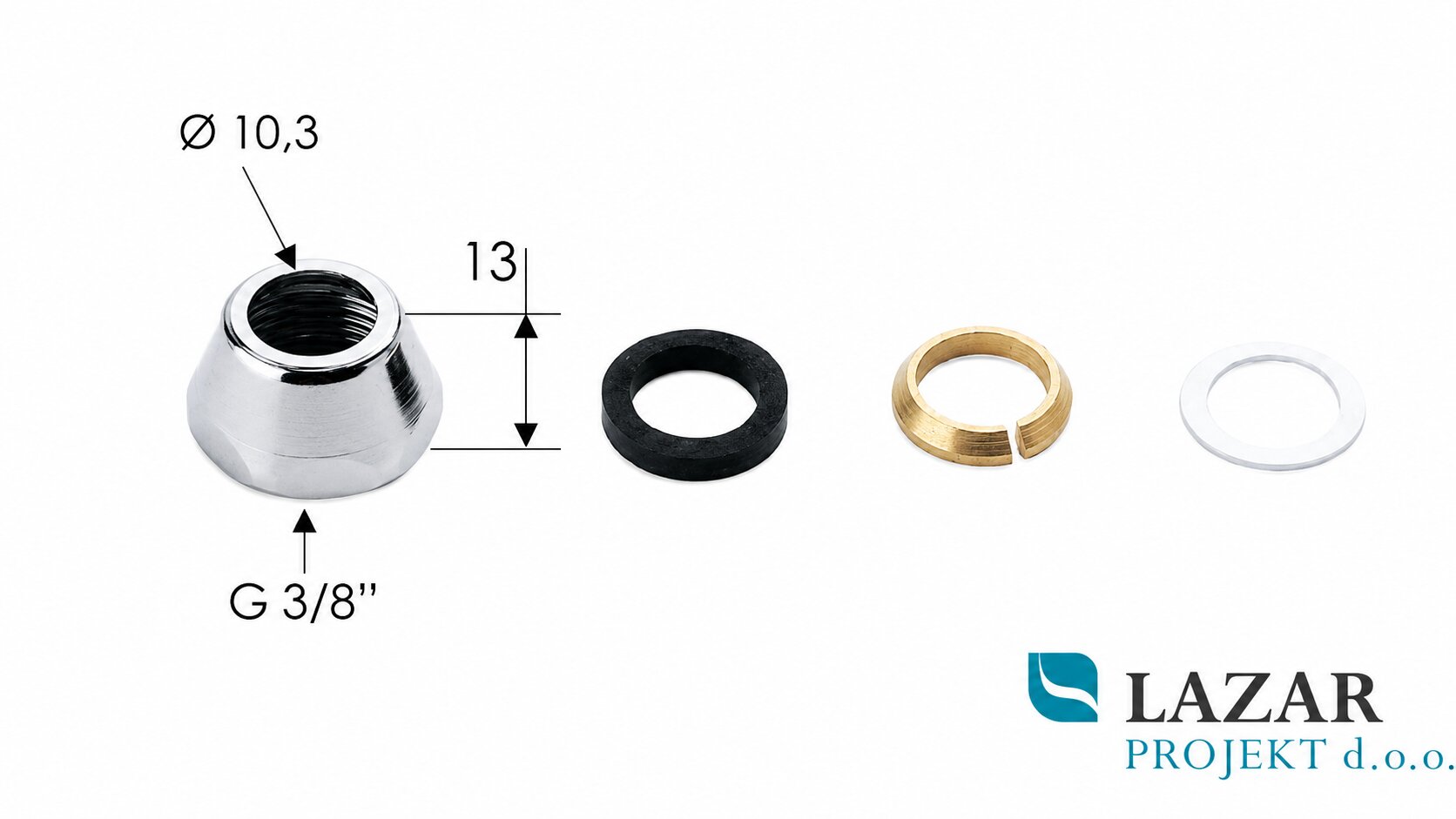

The set includes a chrome-plated connection nut and three sealing or retaining components. When correctly installed, these components secure the tube and seal the connection.

The nut has a G 3/8-inch female thread, a 10.3 mm internal passage and a height of 13 mm. Its shaped outer surface makes it easier to tighten during installation.

The product can be used as a replacement or connection part for compatible angle valves, taps and other plumbing components with a G 3/8-inch connection for a 10 mm tube.

Important: Before ordering, check the outside diameter of the tube, the connection thread and the required sealing arrangement. This product is not a complete valve or tap; it consists only of the connection nut and the supplied sealing and retaining components.

Technical specifications

Manufacturer: Remer Rubinetterie
Article number: 117RA
Product type: connection nut with sealing set
Nut thread: G 3/8″ female
Suitable tube size: Ø 10 mm
Internal opening: 10.3 mm
Nut height: 13 mm
Nut finish: chrome-plated
Set contents: nut and three sealing or retaining components
Application: connection of a Ø 10 mm tube to a compatible G 3/8″ fitting
Complete valve or tap: not included
Sales unit: one set

Important: The image is for illustration purposes only and may not show all details of the actual product.
