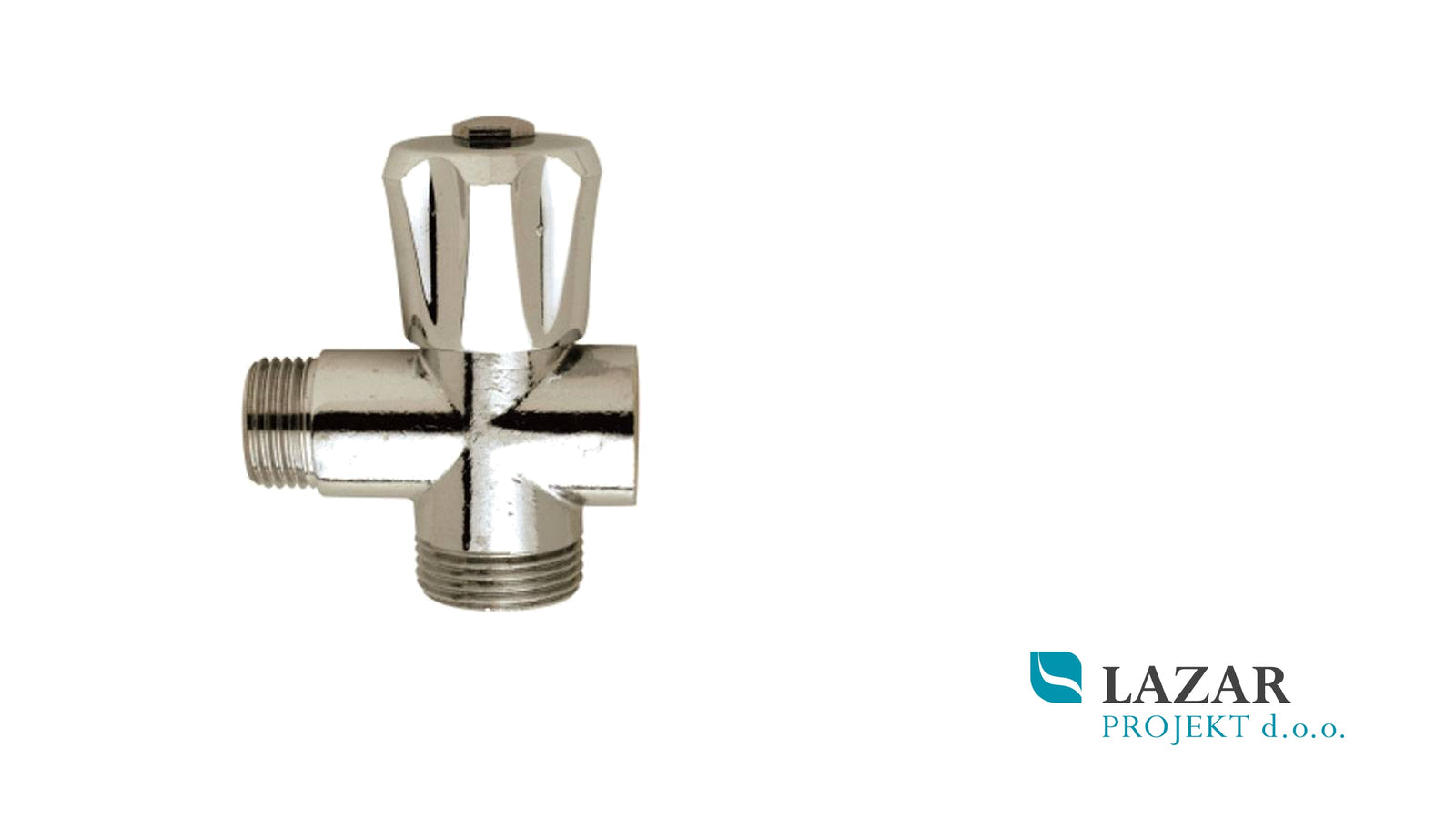

Luxor S 74 70312100 intermediate valve for washing machine or dishwasher – chrome

The Luxor S 74, article number 70312100, is a chrome-plated intermediate spindle valve designed for installation within an existing water-supply connection. It provides an additional outlet for connecting a washing machine or dishwasher without removing the existing connected appliance or sanitary fitting.

The valve has a 1/2-inch male thread on one side and a 1/2-inch female thread on the other. This configuration allows it to be installed between the existing water outlet and a sanitary mixer or another connected component. The lower 3/4-inch male connection is intended for the water-supply hose of a washing machine or dishwasher.

Water flow is opened and closed by means of a traditional multi-turn spindle mechanism with a six-lobed handle. It is therefore not a ball valve. The body is manufactured from CW617N brass, while the chrome finish provides a neat appearance for visible installations.

Important: This is a multi-turn spindle valve and not a ball valve. Before installation, check the direction and size of all connections and ensure that the threaded joints are sealed correctly.

Technical specifications

Manufacturer: Luxor
Collection: S 74
Article number: 70312100
Product type: intermediate spindle valve
Valve design: multi-turn spindle valve
Handle type: six-lobed handle
Connection 1: 1/2-inch male thread
Connection 2: 1/2-inch female thread
Bottom connection: 3/4-inch male thread
Bottom connection application: washing machine or dishwasher supply hose
Body material: CW617N brass
Finish: chrome
Maximum working pressure: 10 bar
Maximum temperature: 90 °C
Installation: intermediate installation in an existing water-supply connection
Sales unit: one piece
