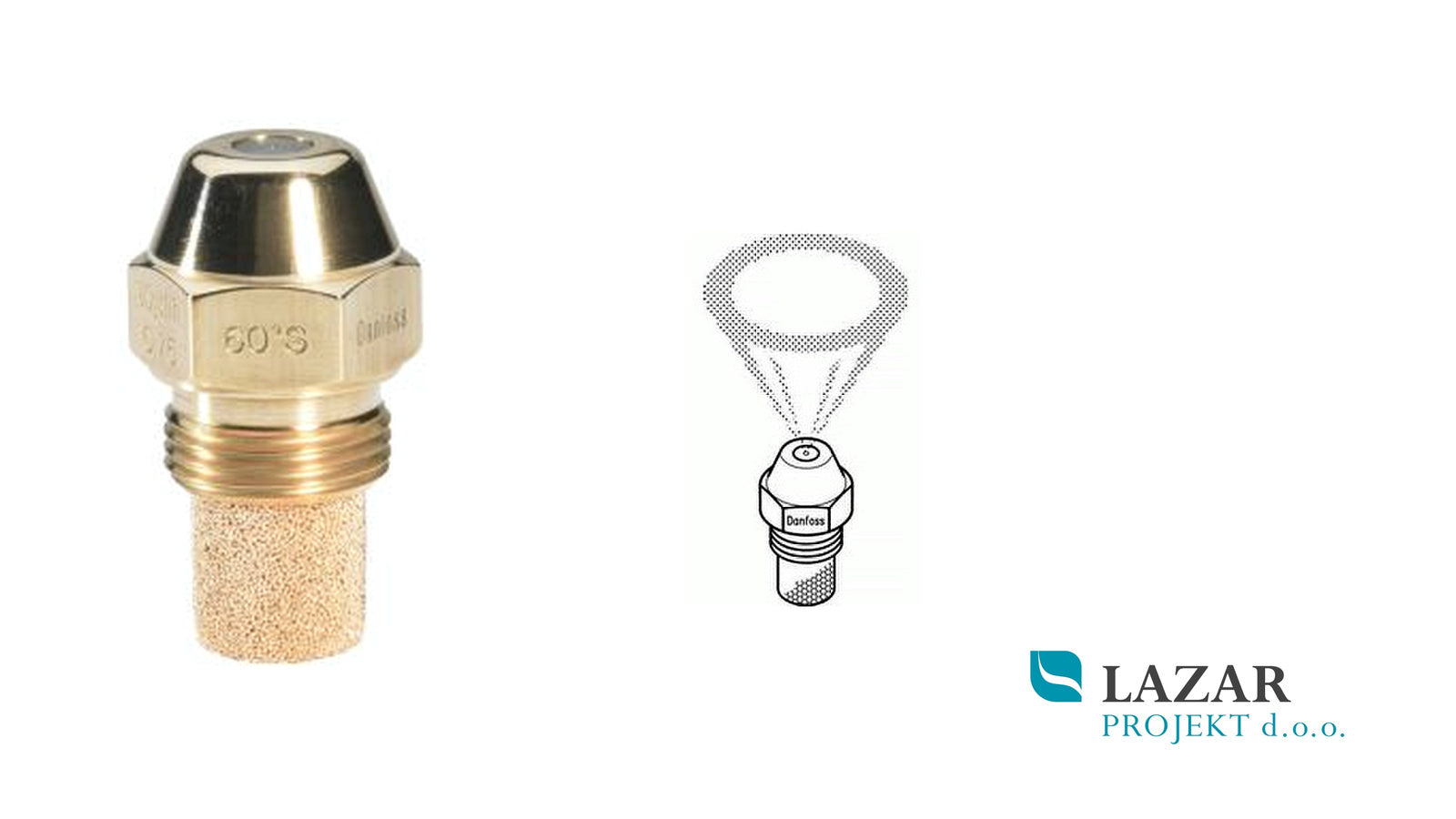

Danfoss OD-H oil burner nozzle – hollow cone

Danfoss OD-H is a precision oil burner nozzle designed for atomising fuel oil in high-pressure oil burners. The designation H – Hollow indicates a hollow spray pattern in which most droplets are concentrated around the outer part of the spray cone.

Correct nozzle selection requires the specified flow rate, spray angle and spray pattern to match the burner and combustion chamber. Select the variant that corresponds to the markings on the existing nozzle or to the burner manufacturer’s specifications.

• manufacturer: Danfoss,
• series: OD-H,
• product type: oil burner nozzle,
• spray pattern: hollow,
• spray-pattern marking: H,
• different capacities in USgal/h,
• different spray angles,
• for high-pressure oil burners,
• suitable for light and heavy fuel oil,
• integrated filter or strainer,
• sales unit: piece.

Important: Before ordering, check the complete marking on the existing nozzle: capacity, spray angle and the letter H. A nozzle with the same capacity but a different spray angle or spray pattern may not be suitable for the burner.

Nozzle replacement and burner adjustment should be carried out by a suitably qualified service technician.
