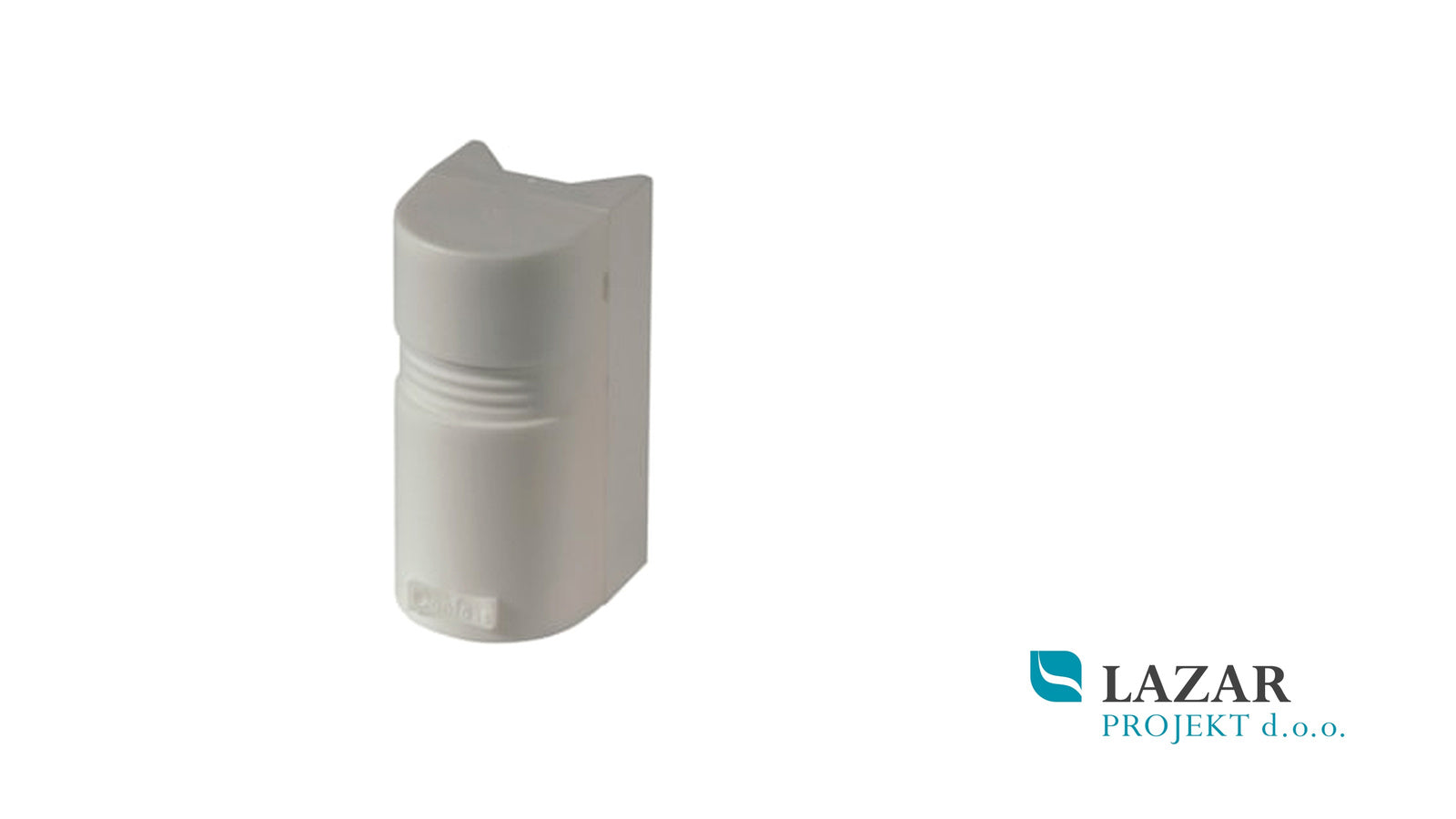

Danfoss ESM-10 Pt 1000 room temperature sensor – 087B1164

Danfoss ESM-10, product code 087B1164, is a room temperature sensor with a Pt 1000 sensing element. It measures the room temperature and provides the temperature signal to a compatible electronic heating controller.

The sensor has a terminal block for two wires in the base section and is designed for wall mounting with screws. The cover and base are manufactured from ABS.

• manufacturer: Danfoss,
• model: ESM-10,
• product code: 087B1164,
• product type: room temperature sensor,
• sensing element: Pt 1000,
• temperature range: –30 to +50 °C,
• time constant: 8 min,
• enclosure rating: IP54,
• electrical connection: terminal block for two wires,
• mounting: wall mounting with screws,
• housing material: ABS,
• external dimensions: approximately 26 × 55 × 31 mm,
• sales unit: one piece.

Important – packaging condition: The packaging is in poor condition.

Before ordering, check the controller documentation to confirm compatibility with a Pt 1000 room temperature sensor and the Danfoss ESM-10.

Electrical connection should be carried out by a suitably qualified person.
