Danfoss 065-4417 AVT immersion pocket, R 3/4, 210 mm, PN 25
Danfoss 065-4417 is a stainless-steel immersion pocket designed for installing a temperature sensor in a pipe or heating system.
The pocket separates the sensor from the heating medium and allows it to be installed in a suitable threaded connection. It is intended for Danfoss AVT applications and a temperature sensor with a length of 210 mm.
- manufacturer: Danfoss,
- product code: 065-4417,
- product type: temperature-sensor immersion pocket,
- application: Danfoss AVT,
- length: 210 mm,
- pocket design or diameter: 16 mm,
- connection: R 3/4,
- thread type: tapered male pipe thread,
- material: stainless steel,
- pressure class: PN 25,
- nominal pressure: 25 bar,
- net weight: 0.177 kg,
- sales unit: one piece.
Important: Before ordering, check the temperature-sensor code, required pocket length, connection size and permitted system pressure.
According to Danfoss documentation, this version is not suitable for AVT thermostatic actuators with product codes 065-0604, 065-0605, 065-0606 and 065-0607.

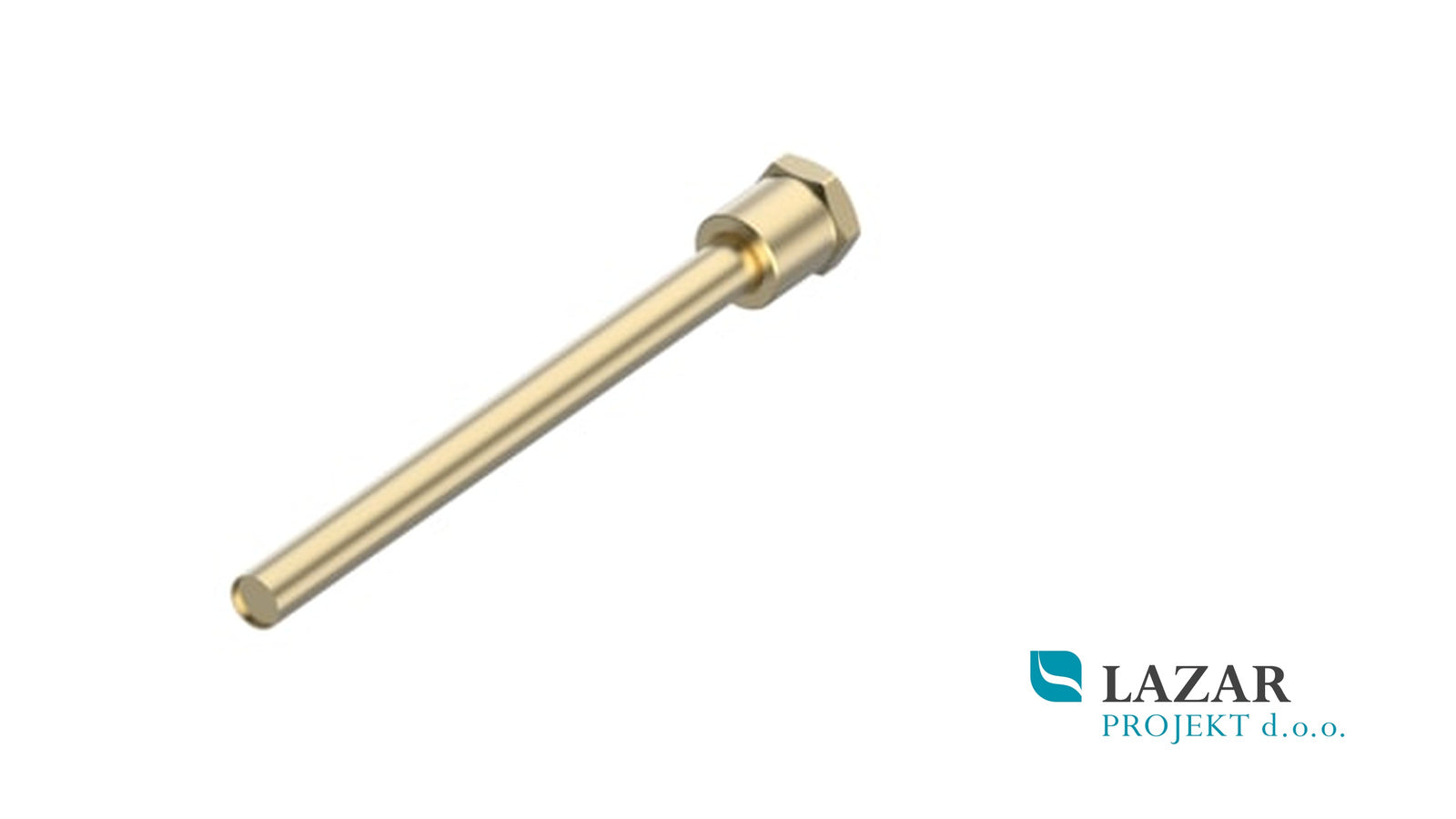

The image is for illustrative purposes only. The actual appearance may differ. Use product code 065-4417 and the listed technical specifications for correct identification.
The offer includes the immersion pocket only. The temperature sensor, controller, valve and other system components are not included.
Installation must be carried out by a suitably qualified person. Check the threaded connection for leaks before commissioning.
