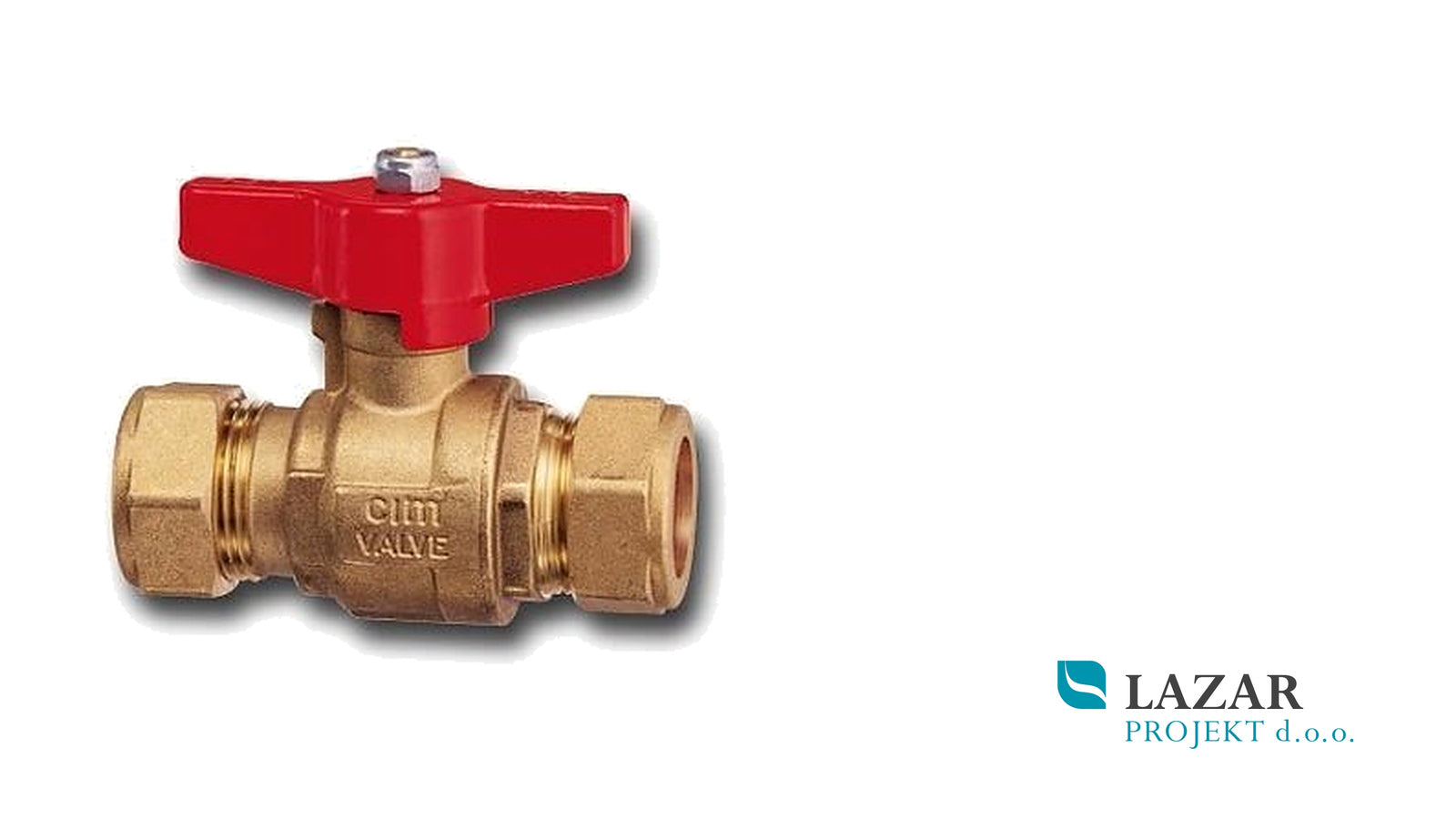

Cimberio 309CR ball valve for 28 mm copper pipe

Cimberio 309CR is a straight, full-bore shut-off ball valve from the T12 series, designed for direct connection to 28 mm copper pipe using compression or bicone connections.

Its full-bore construction reduces flow resistance and allows the pipeline to be opened or shut off quickly. The aluminium butterfly handle is suitable for installations where there is limited space for operating a conventional lever handle.

The valve body is manufactured from CW625N-DW CR/DZR brass, which is resistant to dezincification. The valve has a nominal pressure rating of PN 16 and is suitable for operating temperatures from –20 to 120 °C.

It is suitable for heating, cooling, plumbing and pneumatic systems, as well as installations carrying other compatible non-corrosive fluids.

Technical specifications

Manufacturer: Cimberio
Article: CIM 309CR
Series: T12
Product type: full-bore shut-off ball valve
Design: straight
Pipe size: 28 mm
Connections: 28 × 28 mm compression/bicone
Suitable pipe: copper pipe
Body material: CR/DZR brass
Alloy: CW625N-DW
Handle: aluminium butterfly handle
Nominal pressure: PN 16
Operating temperature: –20 to 120 °C

The image is for illustrative purposes only. The actual appearance of the product may vary slightly depending on the version and production batch.
