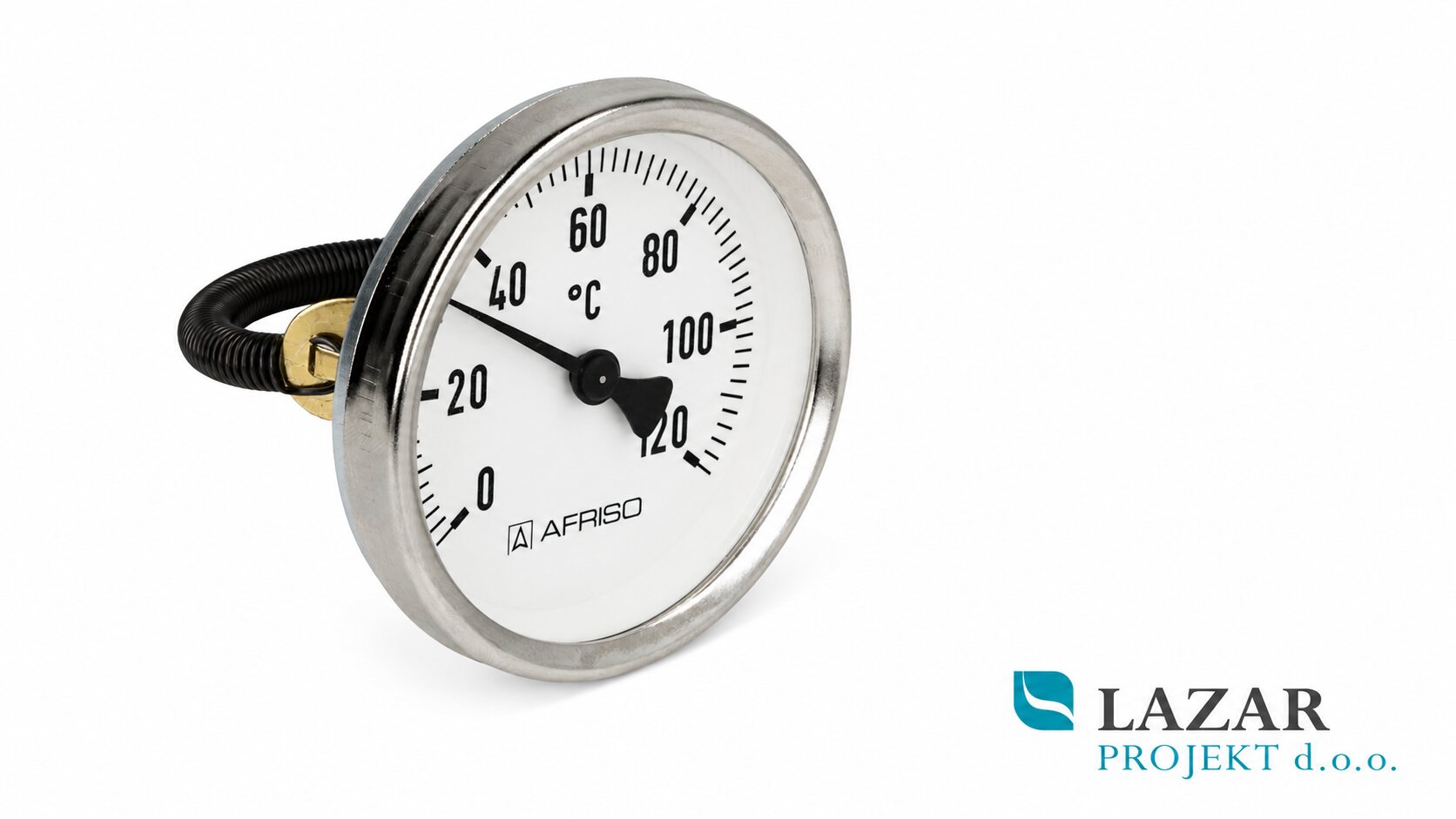

AFRISO 63822 surface-mounted thermometer ATh 63 F, 0–120 °C

AFRISO 63822 ATh 63 F is a bimetal surface-mounted thermometer designed to measure pipe surface temperature in heating, ventilation and plumbing systems.

The thermometer is mounted directly onto the pipe using a fastening spring. It is suitable for pipes from 3/8" to 1 1/2". The heat-conducting element rests against the pipe surface and allows quick monitoring of the medium temperature inside the installation.

The thermometer has a 63 mm dial, a measuring range from 0 to 120 °C, and a black scale and pointer on a white background. The housing is made of galvanised sheet steel, while the push-on bezel is made of nickel-plated sheet steel.

Technical details
Manufacturer: AFRISO
Article: 63822
Model: ATh 63 F
Product type: surface-mounted thermometer
Nominal size: 63 mm
Measuring range: 0–120 °C
Measuring element: bimetal spiral
Accuracy class: 2 according to EN 13190
Mounting: fastening spring
Suitable for pipes: 3/8" to 1 1/2"
Connection position: centre back
Dial: white with black scale
Pointer: black
Housing: galvanised sheet steel
Bezel: nickel-plated sheet steel
Window: plastic
Application: heating, ventilation and plumbing systems
