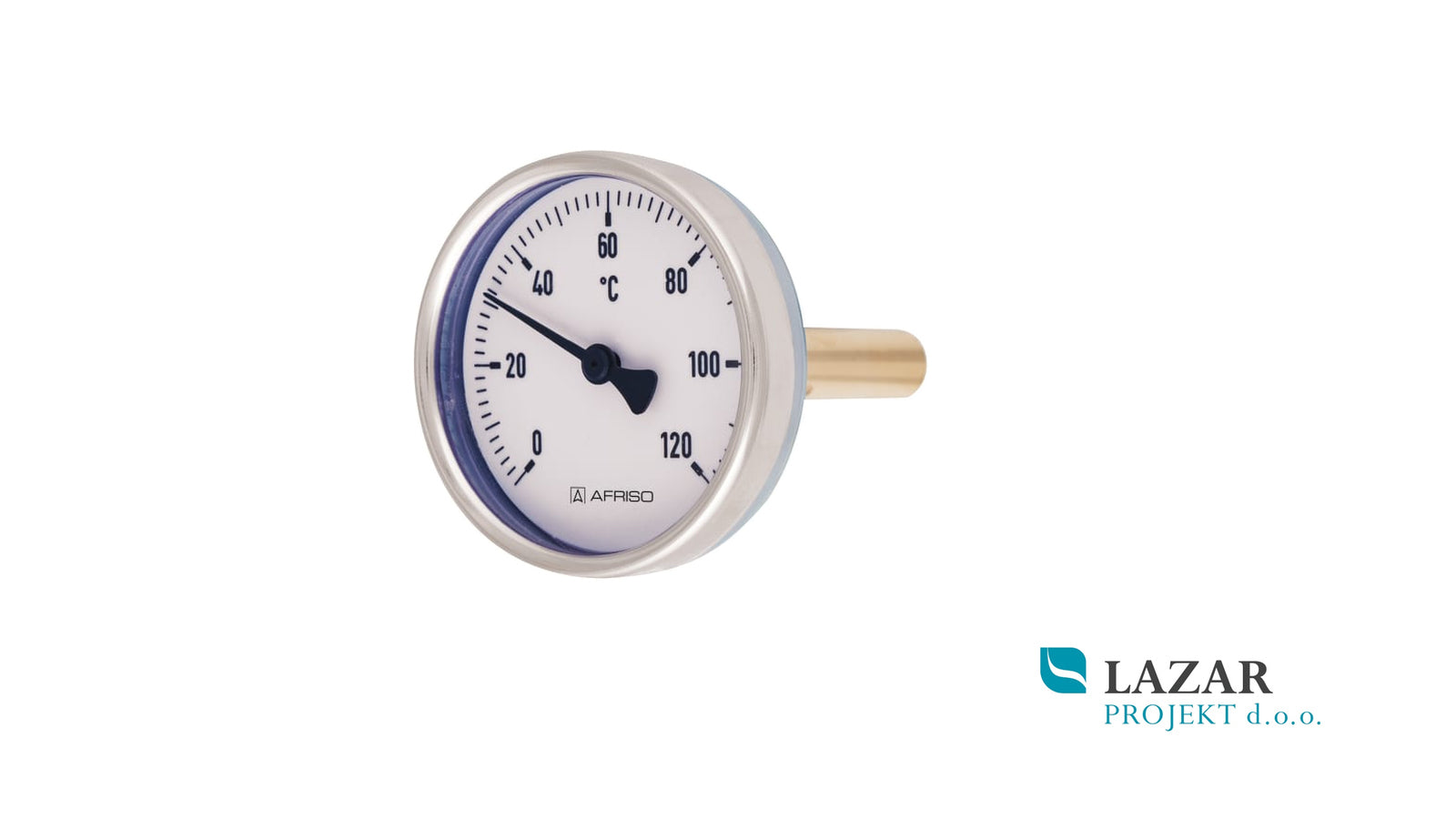

Afriso 63809 bimetal thermometer 0–120 °C, G 1/2, Ø 80 mm, 150 mm probe

Afriso 63809 is a bimetal thermometer for temperature indication in heating, sanitary and other installation systems. It is designed for mechanical temperature display of the medium in pipework, boilers, water heaters, manifolds or other parts of the system where clear and direct temperature monitoring is required.

The thermometer has a round 80 mm housing, a measuring range from 0 to 120 °C and an axial G 1/2 connection. The 150 mm probe is suitable for applications where a longer measuring stem or deeper installation point is required. The larger dial provides good readability.

Before ordering, we recommend checking the connection size, probe length and installation position in the existing system.

Technical data

Manufacturer: Afriso
Item number: 63809
Product type: bimetal thermometer
Type / series: BiTh 80 ST
Measuring range: 0–120 °C
Housing diameter: Ø 80 mm
Connection: G 1/2
Connection position: axial / centre back
Probe length: 150 mm
Measuring element: bimetal helix
Accuracy class: 2 according to EN 13190
Maximum pressure at thermowell: 6 bar
Application: heating, sanitary and installation systems
