AFRISO 63562 pressure gauge 0–4 bar, Ø 80 mm, radial connection G 1/2"

AFRISO 63562 is an analogue pressure gauge for pressure indication in heating and other installation systems. It is designed for mechanical pressure reading where a clear and easy-to-read display of the operating pressure is required.

The pressure gauge has a measuring range from 0 to 4 bar, a Ø 80 mm dial and a radial G 1/2" connection. The radial connection means that the connection is positioned at the bottom, making the gauge suitable for installation on pipework, manifolds, boiler connections or other measuring points in heating systems.

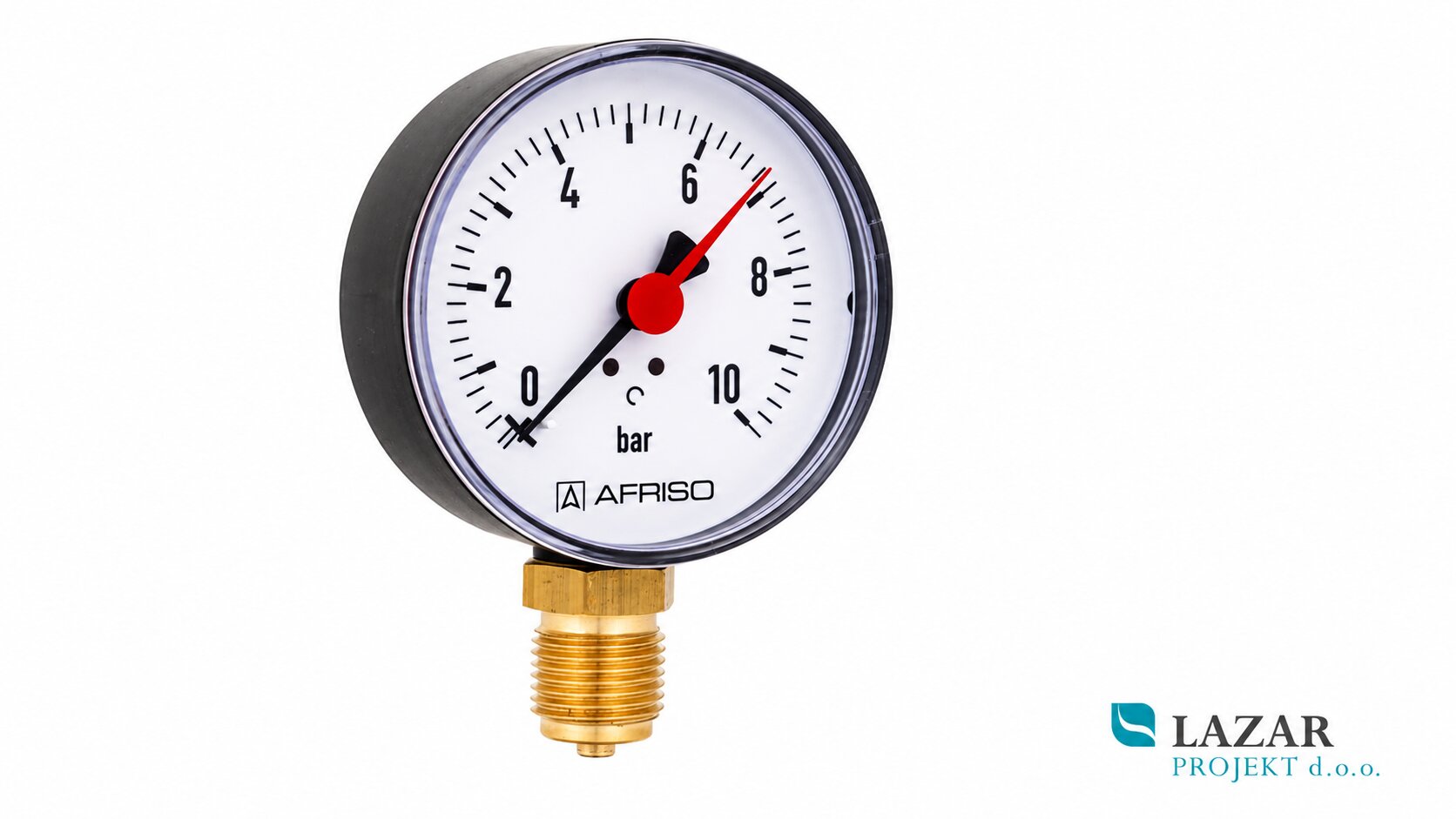

The image is symbolic. The product photo may not show the actual measuring range of this item. For AFRISO 63562, the actual measuring range is 0–4 bar, regardless of any different range shown on the symbolic image.

Before ordering, we recommend checking the measuring range, dial diameter, connection size and installation type against the existing pressure gauge or system.

Technical data

Manufacturer: AFRISO
Item number: 63562
Product type: pressure gauge
Measuring range: 0–4 bar
Dial diameter: Ø 80 mm
Connection: G 1/2"
Connection position: radial / bottom connection
Display: analogue dial
Application: heating and installation systems
Purpose: pressure indication in the system
