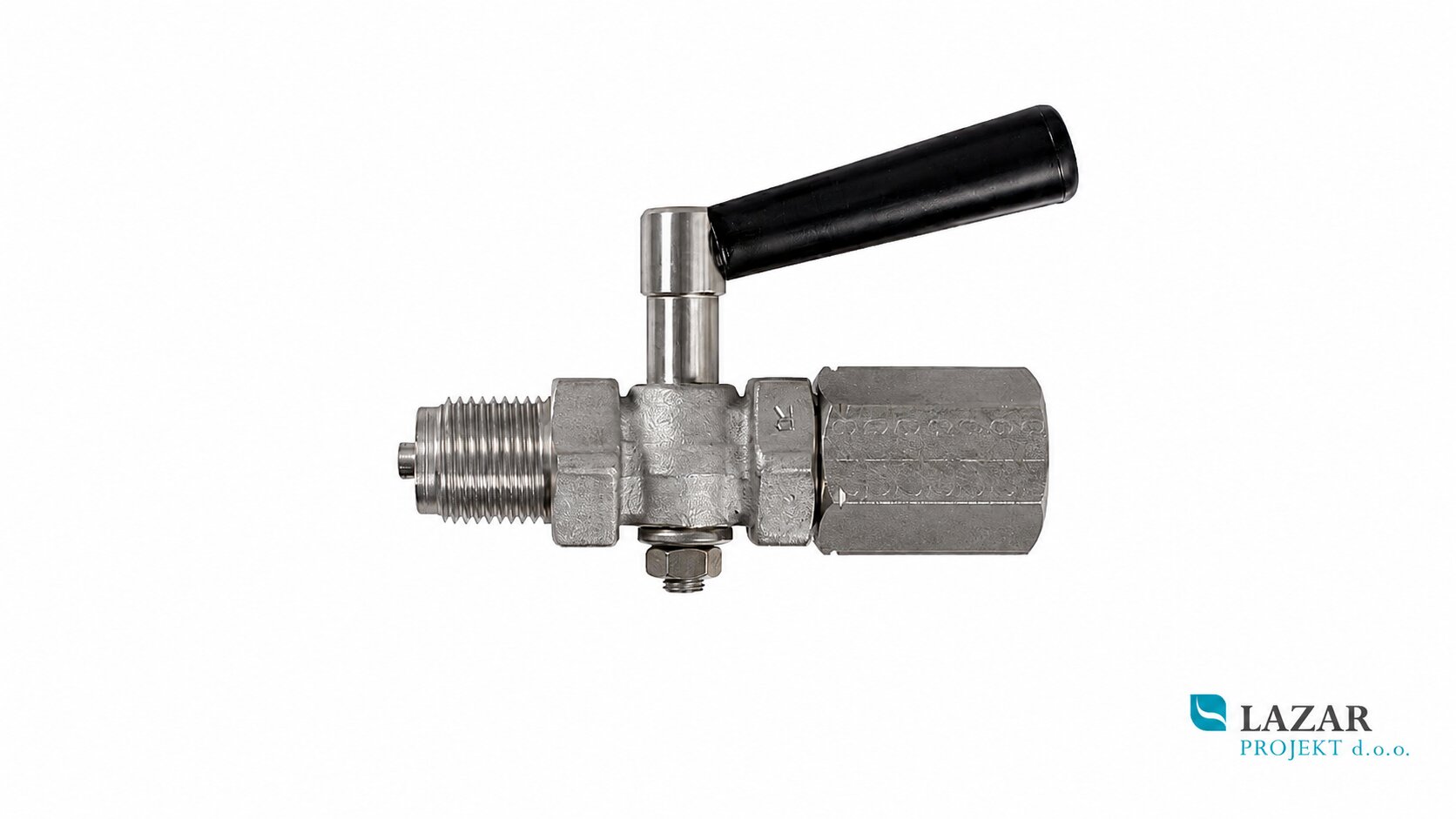

AFRISO 63090 pressure gauge shut-off valve G 1/2

The AFRISO 63090 is a pressure gauge shut-off valve, intended for installation between the measuring pipe and the pressure gauge. It is used to open or shut off the connection to the pressure measuring instrument and allows safer maintenance, replacement or inspection of the pressure gauge in the installation.

The product is suitable for pressure measurement applications in systems with liquids, gases and steam. The SM x Z version indicates a connection with union nut and male threaded connection G 1/2. The body is made of stainless steel 316Ti, with a nominal pressure rating of PN16.

Technical data:
Manufacturer: AFRISO
Article: 63090
Product type: pressure gauge shut-off valve
Connection: G 1/2
Connection version: SM x Z
Material: stainless steel 316Ti
Nominal pressure: PN16
Medium: liquids, gases and steam
Use: connection between measuring pipe and pressure gauge
Handle: black
