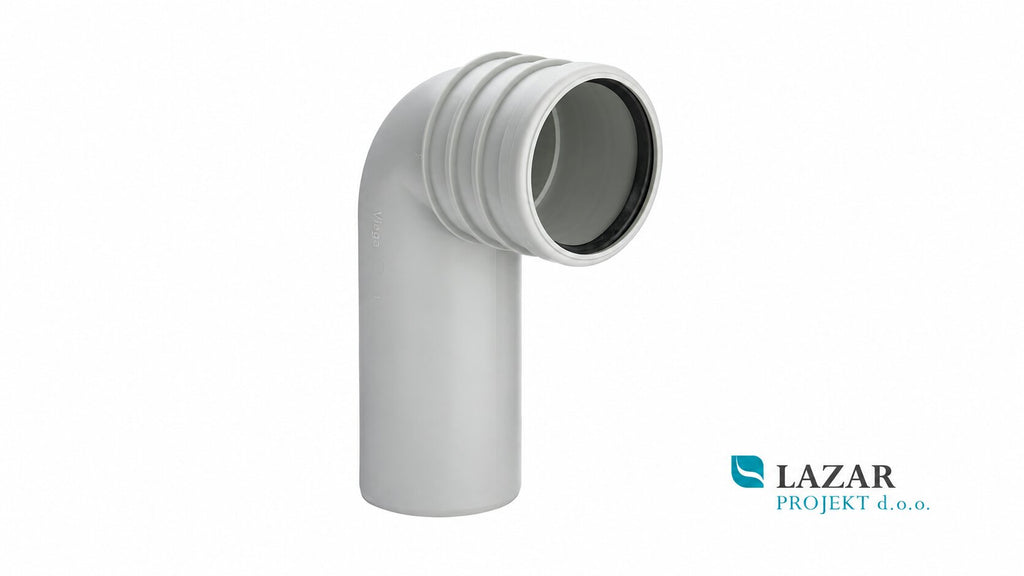

Viega 3816.1 drain elbow Ø90 | 440244

Viega 3816.1 is a Ø90 drain elbow designed for connecting and changing the direction of a waste pipe in domestic drainage systems. The product provides a reliable connection in drainage installations where an angled transition and a 90 mm pipe connection are required.

The elbow is supplied with a seal for simple and tight installation. Due to its shape, it is suitable for sanitary and drainage connections where stable and correct water discharge must be ensured. Before installation, check that the dimensions match the existing installation.

Technical data

Manufacturer: Viega
Item: 440244
Model / designation: 3816.1
Product type: drain elbow

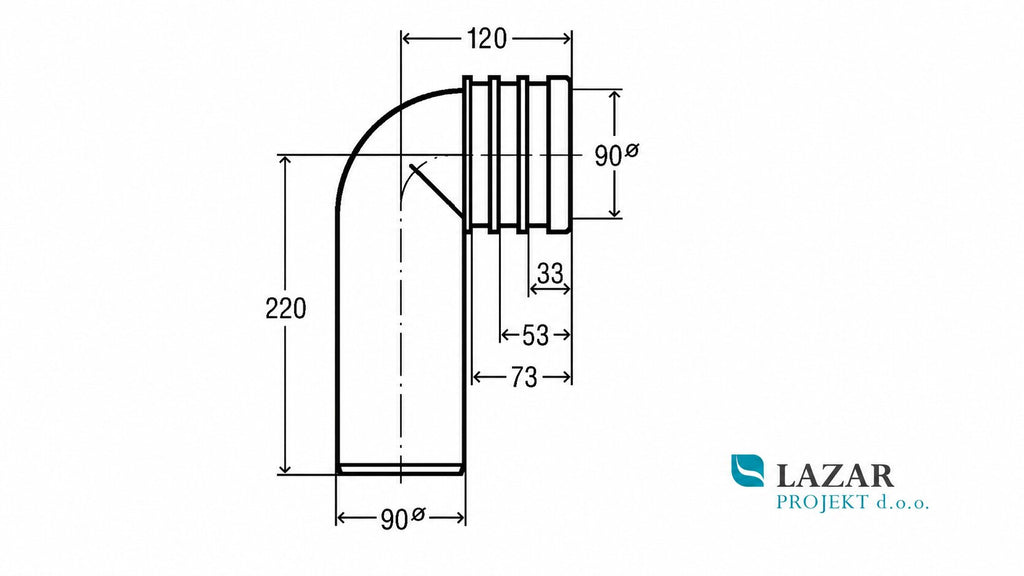

Diameter: Ø90 mm
Height: 220 mm
Length of upper part: 120 mm
Connection dimensions: 33 / 53 / 73 mm
Version: elbow with seal
Use: domestic drainage, sanitary and waste connections
